Product Description
Manifold-Style 4-Bolt Mount Hydraulic Motor Part No. HYD101-1022 fits Kolstrand's popular Single Spool Power Gurdy, and Kolstrand's Nylon Spooled and Brass Spooled Gurdys

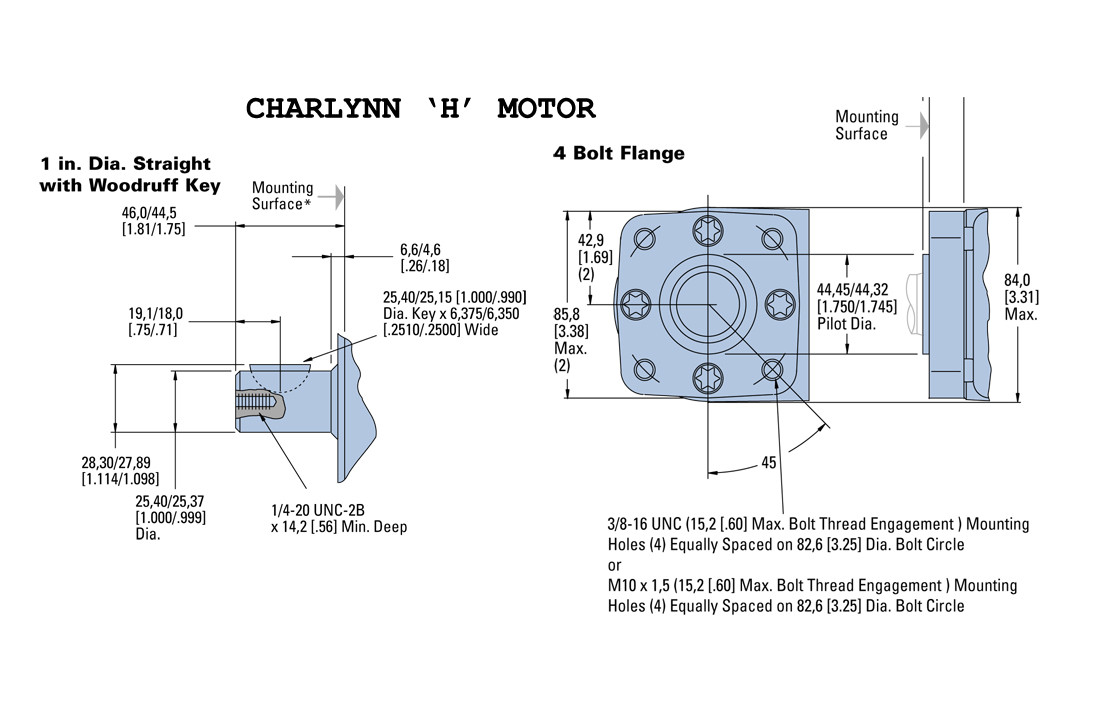

Durable CharLynn Hydraulic Motor is equipped with a 1" Diameter Keyed Shaft and SAE 'A' 4-Bolt Mounting Arrangement with Manifold-mount style (O-Ring) Working Ports
Motor Displacement Size=14.1 Cu. In per Rev
Motor Shaft develops 62 RPM with 4 GPM Input (Maximum Input Flow=15 GPM)
Motor Weighs 13 Lbs

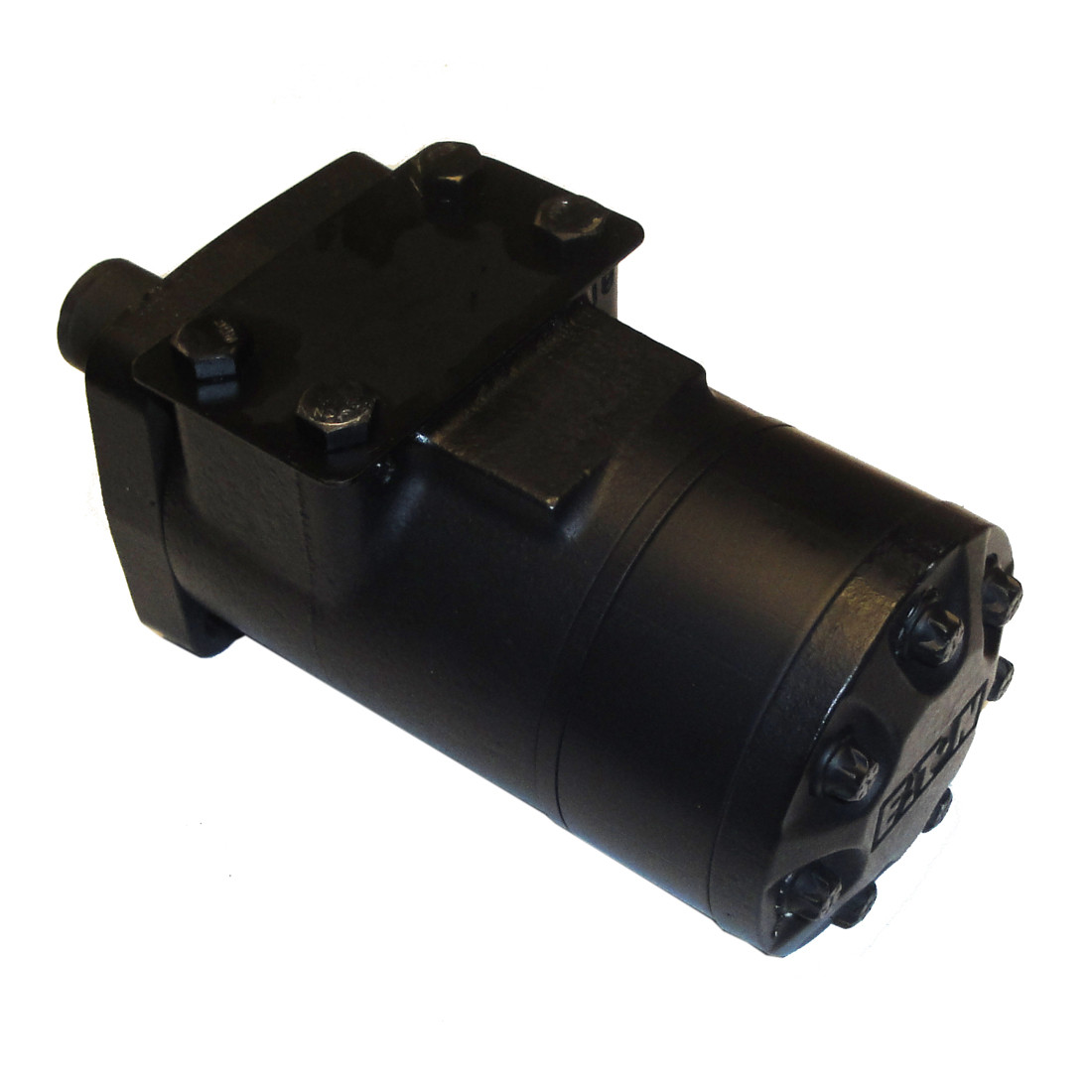

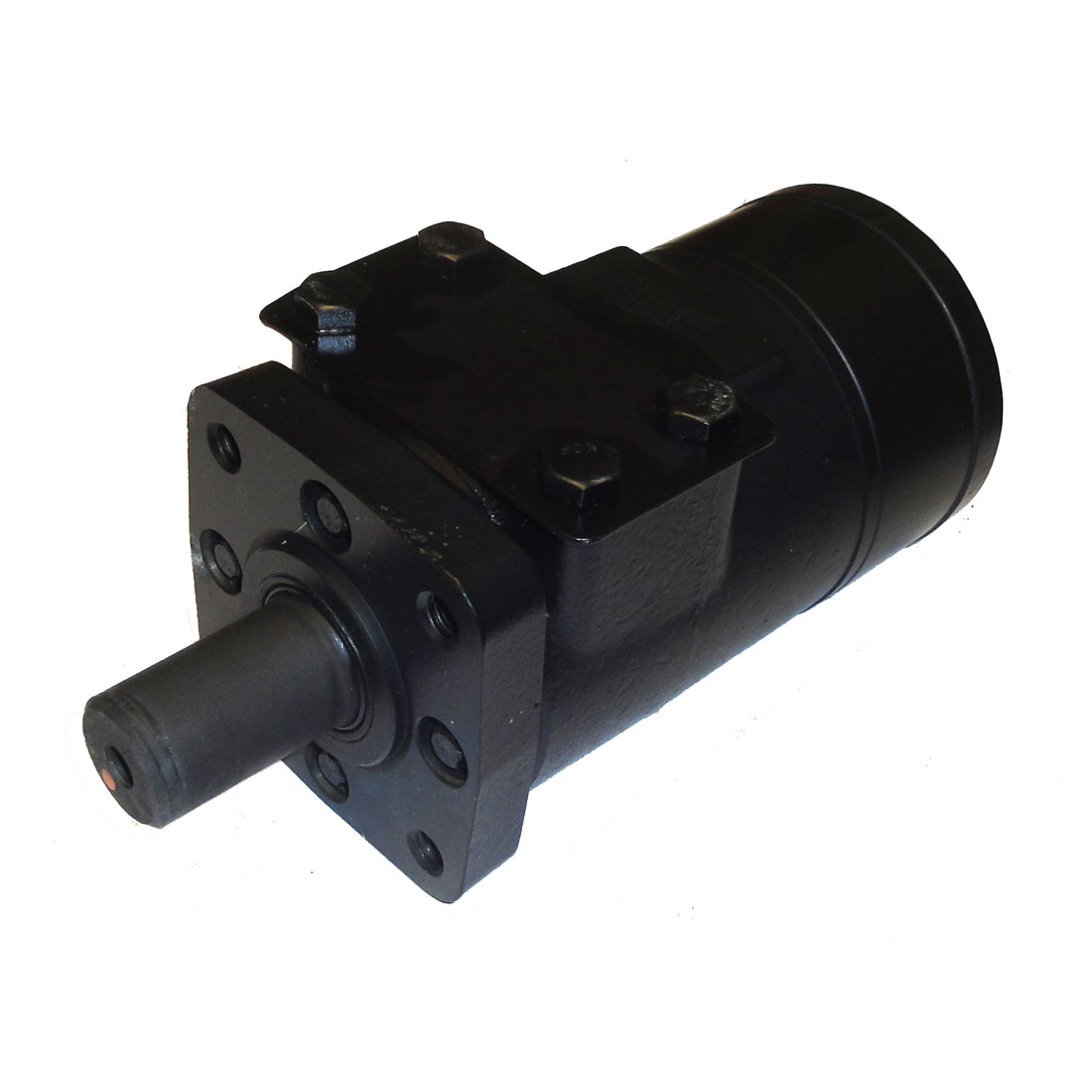

Kolstrand Power Gurdy Manifold-Style Hydraulic Motor - 14.1 Cube (Higher Torque)
H Series Gearmotor motors distribute pressurized fluid into and out of the orbit gear set (Gearmotor) through valve slots integrated into the output shaft.
The Spool Valve H Series motors incorporate both valving & hydrodynamic journal bearings into a common shaft design and provide high torque at low speeds.
Motor shaft rotation can be instantly reversed by changing direction of input/output flow while generating equal torque in either direction. The displacements available provide a wide variety of speeds and torques from any spool valve motor series.
