Product Description
Features

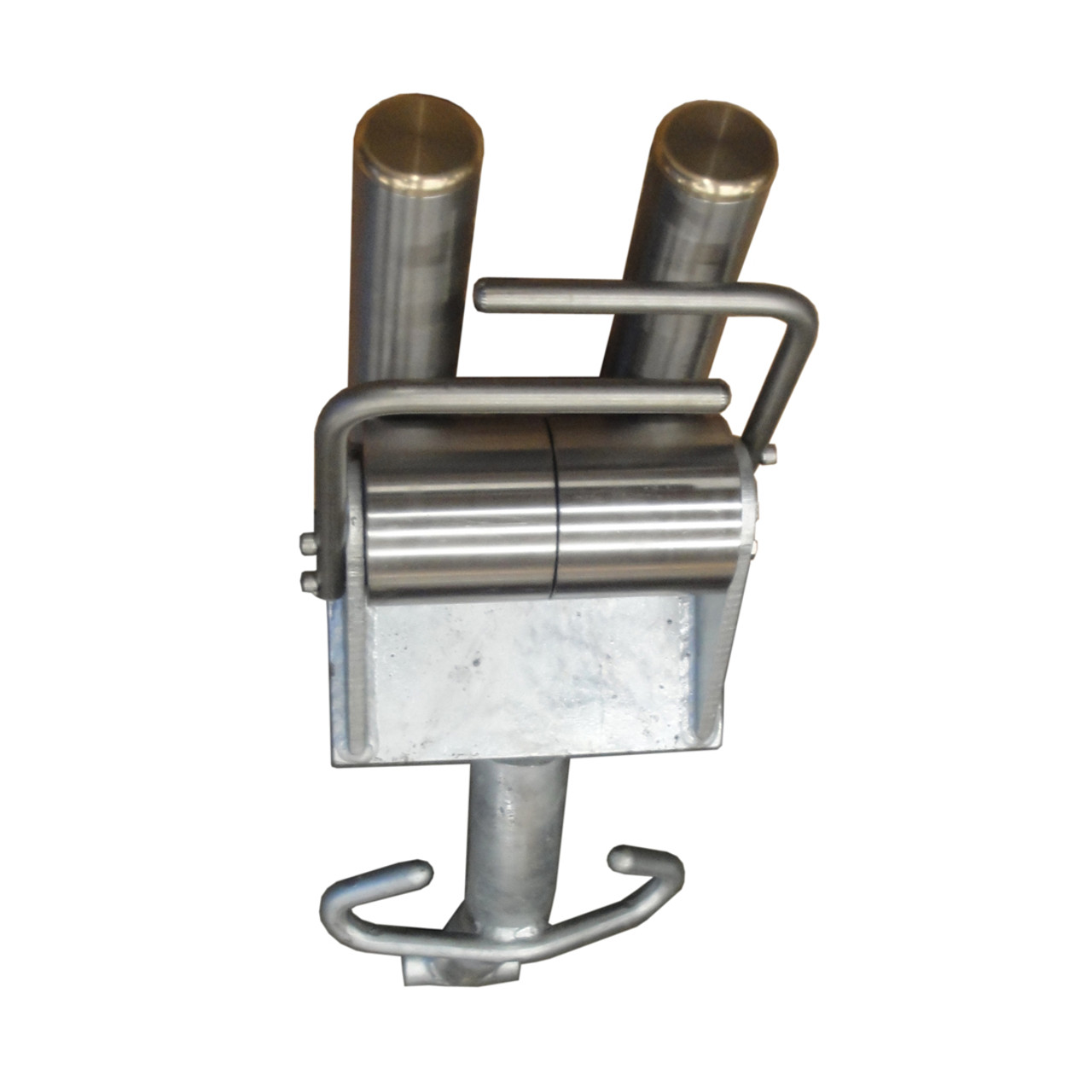

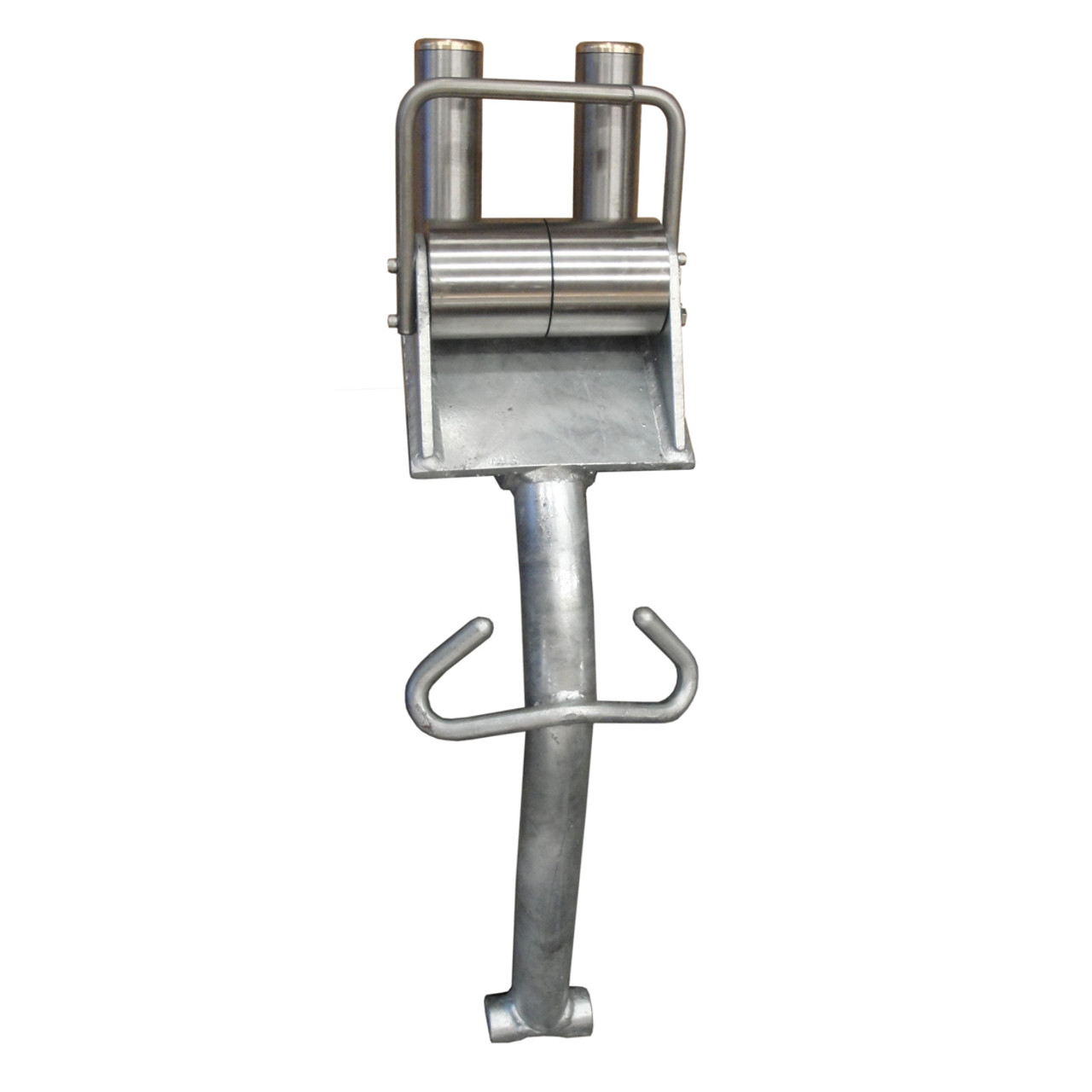

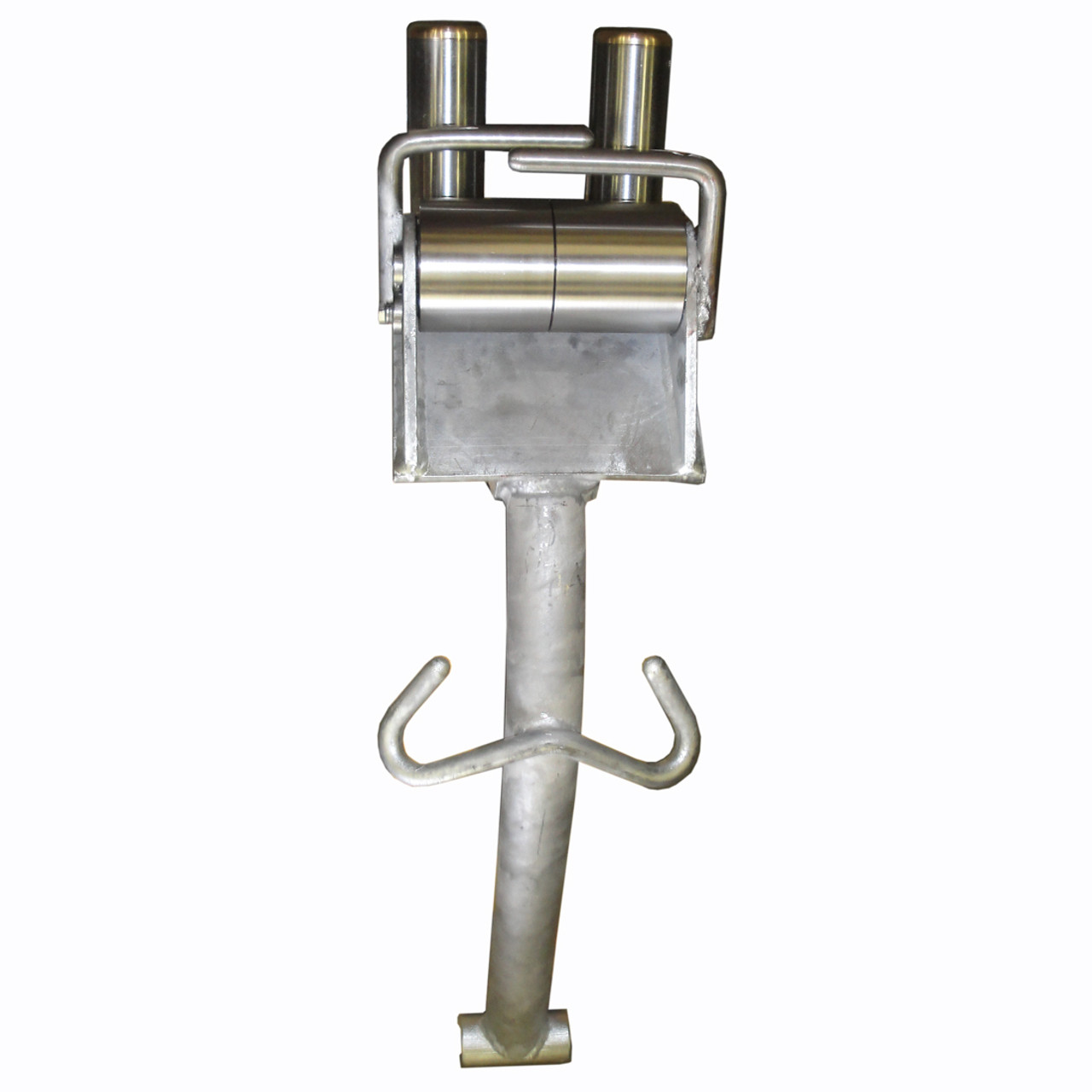

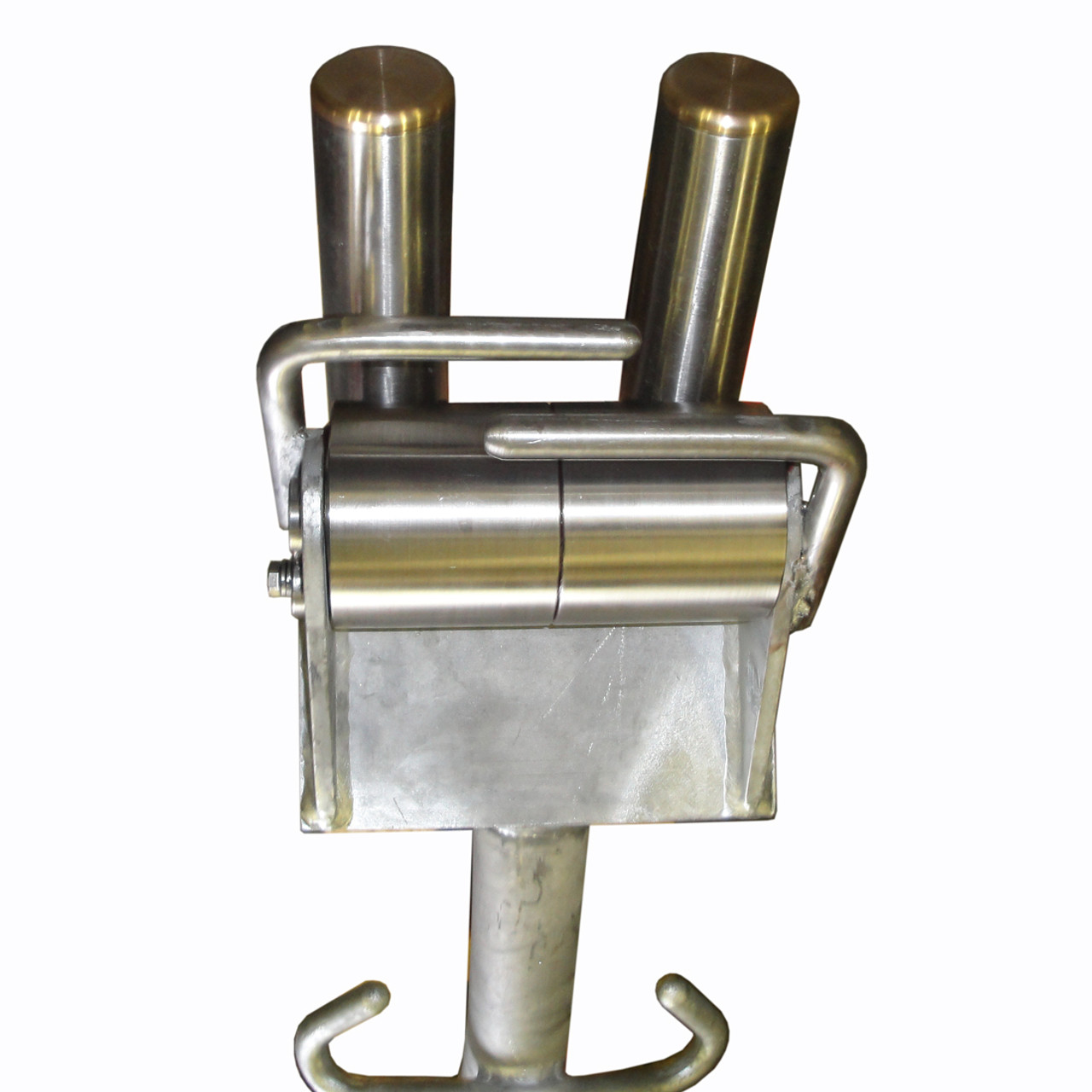

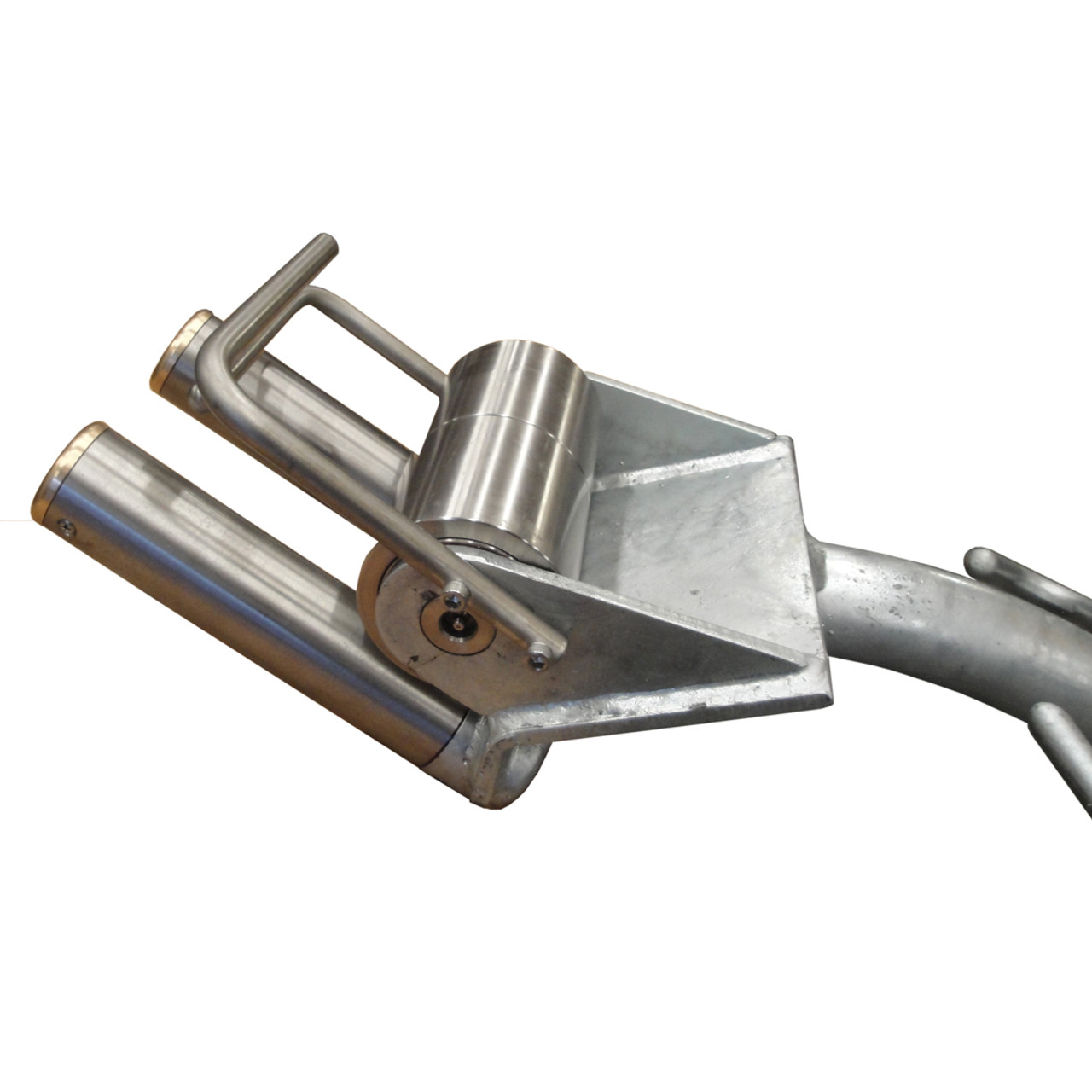

- Complete with (2) Independent 4" Diameter Horizontal Rollers that are 3 7/8" Long (7 3/4" Wide total between the cheeks)
- ONE Fabricated Steel Galvanized Socket Arrangement (for Either Port Side or Stbd Side Fishing)
- All Rollers (Vertical and Horizontal) are equipped with Heavy-duty Stainless Steel ball bearings for long life in the field
- Grease Lubricated Stainless Steel Horizontal and Vertical Rollers for long life in the field
- Davit Pipe and Socket Arrangement is Manufactured in Extra-Heavy Steel then Hot-Dipped Galvanized for use in the salt water environment
- Large 4” Diameter Split Horizontal Rollers Designed to be gentle on the Purse Lines
Optional
- Extra Davit Sockets
- Longer 6 3/4" Horizontal Rollers (13 1/2" Between the cheeks)

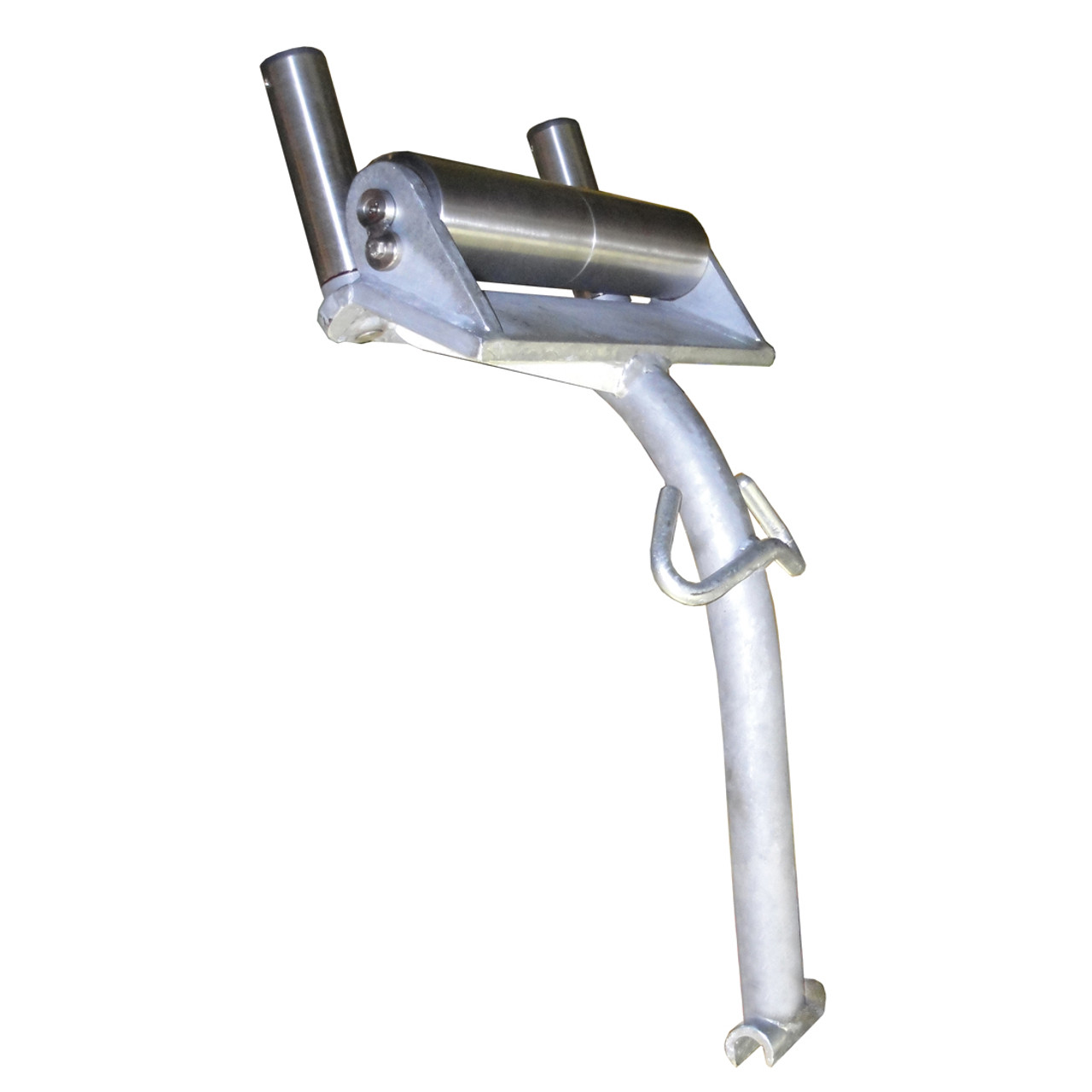

- Extra-Wide 9" Horizontal Rollers (18" Wide total between the cheeks)
NOTE: Davit Sockets must be installed into the vessel securely, keeping in mind the strength of the deck at the rail, or the rail itself. The Davit Socket is designed to transfer whatever load the Davit Roller Assembly might see while in use under loaded conditions. If in doubt with regards to installation, please consult with us or your Naval Architect for additional guidance.
