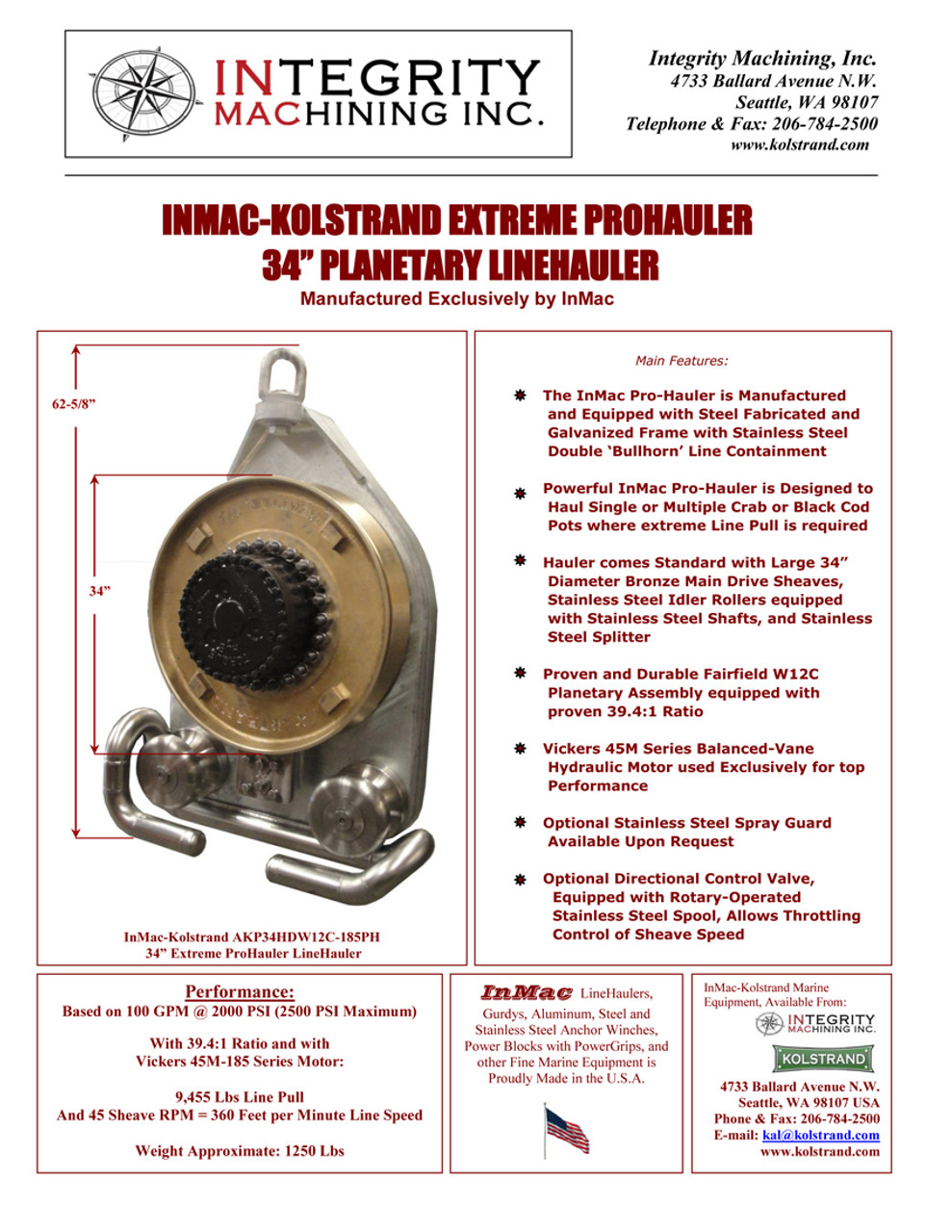

Product Description
Features
- ProHauler Extreme is Manufactured and Equipped with Steel Fabricated Frame, then Hot-Dipped Galvanized
- Proven/Durable Fairfield Planetary Drive with Vickers 45M Balanced-Vane Motor is Standard
- Large 34" Bronze Main Drive Sheaves
- Large Stainless Idlers equipped with Stainless Steel Shafts
- Stainless Steel Bullhorn and Splitter
- ProHauler Extreme is Designed to Haul the heaviest loads to 10,000 Lbs
- Proven and Durable Fairfield W12C Planetary Assembly equipped with 40:1 Ratio
- Vickers 45M Series Balanced-Vane Hydraulic Motor used Exclusively for top Performance
Optional
- Stainless Steel Spray Guard
- Line Containment Bullhorn
Performance
- Based On 100 GPM @ 2000 PSI
- Line Pull: 9,456 Lbs.
- Line Speed: 360 Feet per minute
- Sheave Speed: 45 RPM
NOTE: LineHauler Requires a Davit to be installed into the vessel to be of adequate strength to handle not only the weight of the LineHauler, but the Total Intended Hauling Load. If in doubt, please consult with us or your Naval Architect for additional guidance.
Product Videos
Custom Field
Extreme ProHauler Normal Continuous Line Pull 9,456 Lbs. @ 2000 PSI System Pressure
Extreme ProHauler Maximum Line Pull 11,820 Lbs. @ 2500 PSI System Pressure
