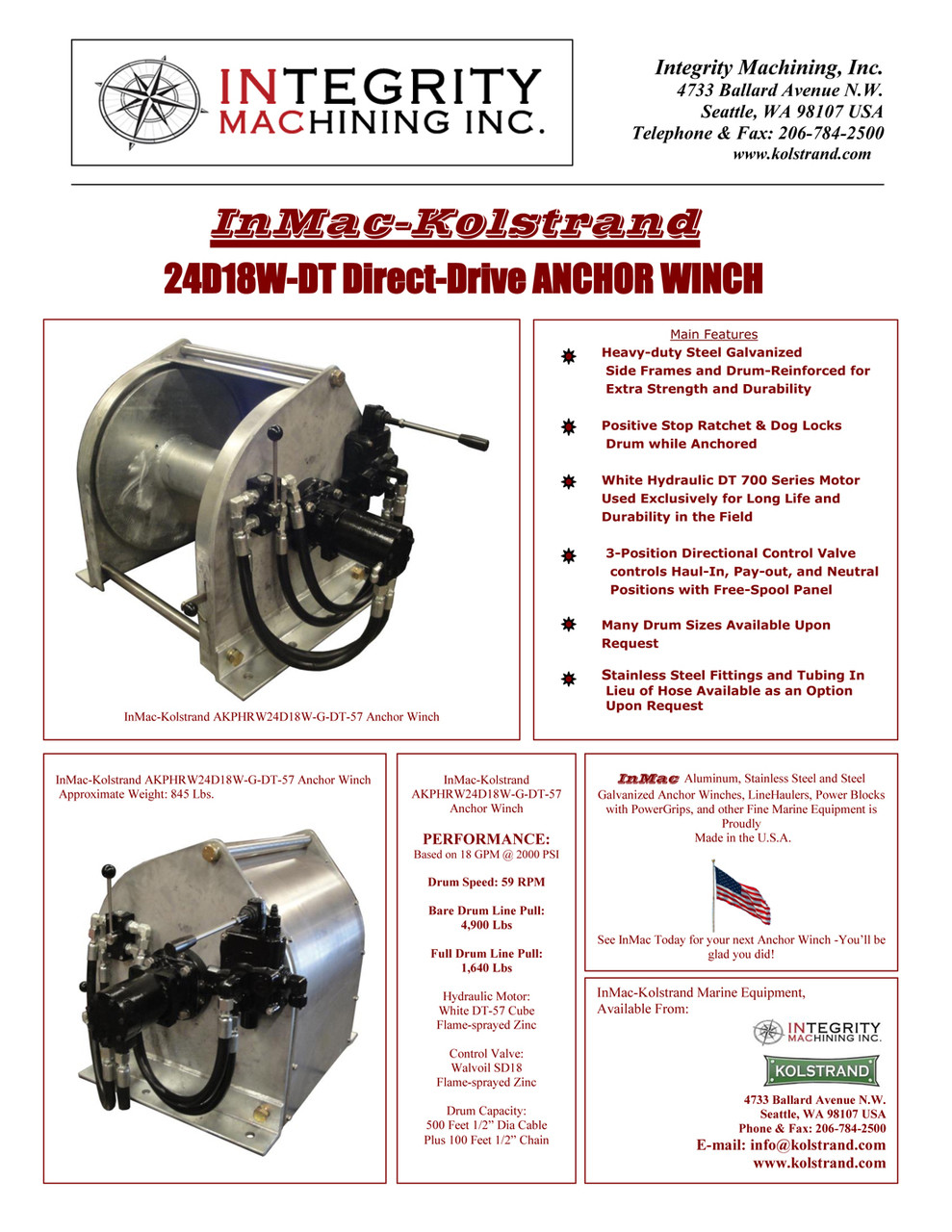

Product Description
Features
- Direct-drive anchor winch housing and drum are manufactured in steel then galvanized with zinc protection
- Winch housing is machined with mounting holes for easy installation
- Positive-Stop ratchet & dog locks the drum while anchored
- White hydraulics DT 700 series high performance series motor used exclusively for long life and durability in the field

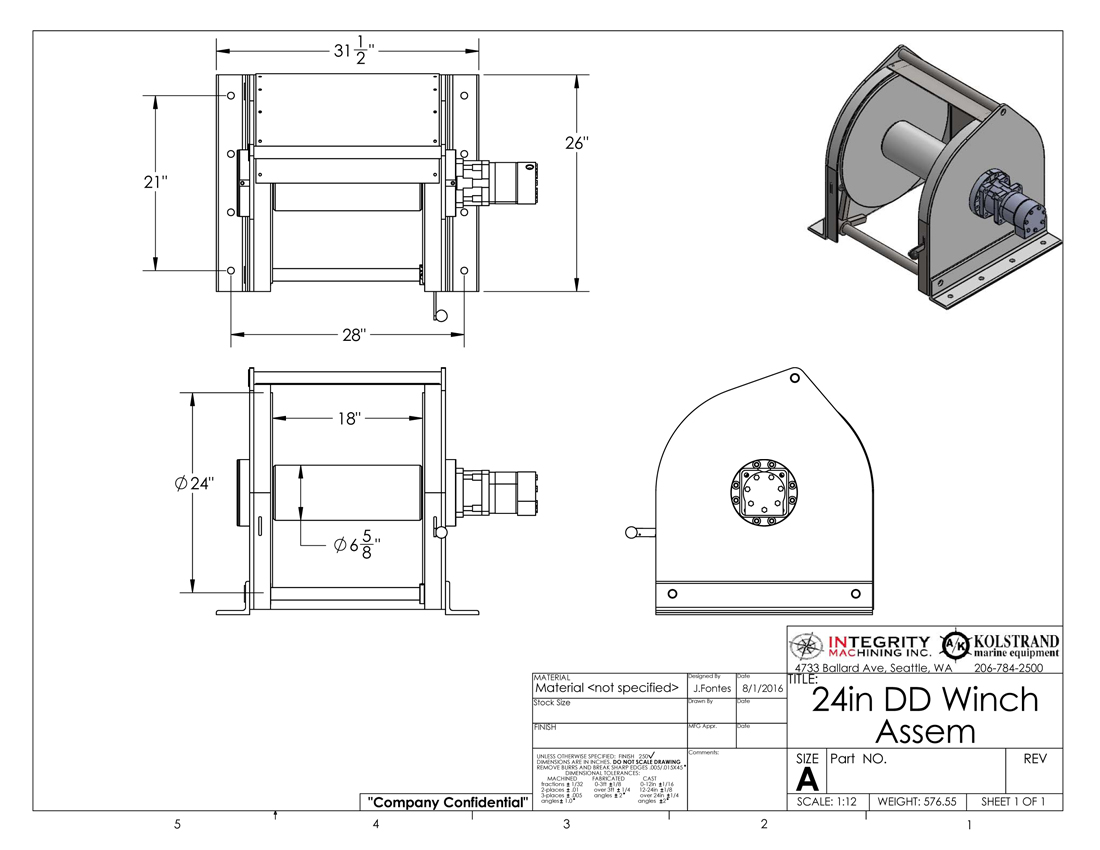

- Drum measures 24 inch Flange diameter X 18 Inch between the flanges with 6-5/8" diameter core
- Designed to store 500 Feet 5/8" cable plus 100 Feet 1/2" chain
- Many drum sizes are available
Winch Performance
- Based on 18 GPM @ 2000 PSI
- Drum speed: 59 RPM
- Bare drum line pull: 4,900 Lbs
- Full drum line pull: 1,640 Lbs
