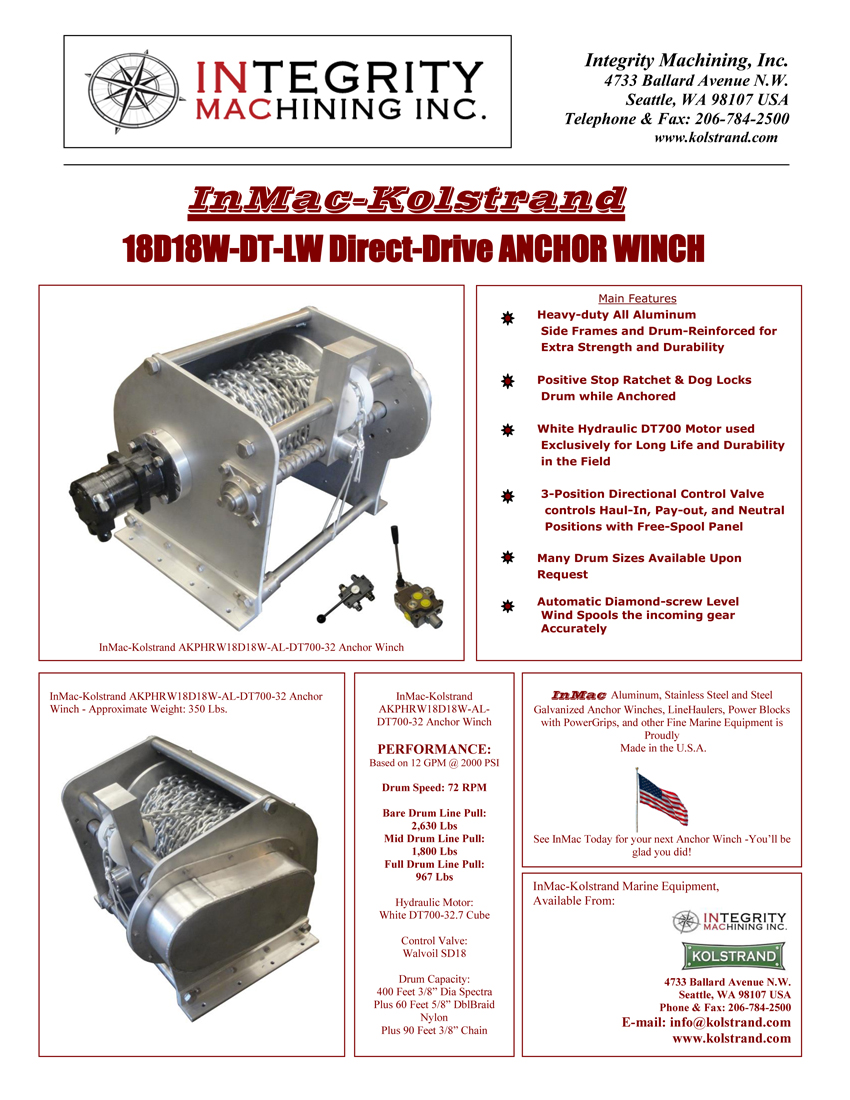

Product Description
Features
- Winch housing machined with mounting holes for easy installation
- Positive-Stop ratchet & dog locks the drum while anchored
- White hydraulics DT 700 Series motor used for long life and durability in the field
- DT motor allows for fast free-spooling, to get the anchor and gear deployed quickly
- Valve components are furnished as loose components for the customer to mount and plumb in a more convenient location
- Installation of the valve components onto the winch frame side available upon request
- Winch has a drum measuring 18 inch flange diameter X 18 inch between the flanges with 6-5/8" diameter core
- Winch was spooled with 400 Feet 3/8" spectra Line, 60 feet double-braided nylon line plus 90 feet 3/8" chain (Note that there is 2" of clear flange still showing as the rode was spooled using the automatic level wind for accurate spooling)
- Many drum sizes are available
Winch Performance
- Based on 12 GPM @ 2000 PSI
- Drum Speed: 72 RPM
- Bare drum line pull: 2,630 Lbs
- Bare drum hauling line Speed: 125 feet per minute
- Mid drum line pull: 1,800 Lbs
- Mid drum hauling line speed: 232 feet per minute
- Full drum line pull: 967 Lbs
- Full drum hauling line Speed: 340 feet per minute
- Approximate weight: 350 Lbs
