Product Description

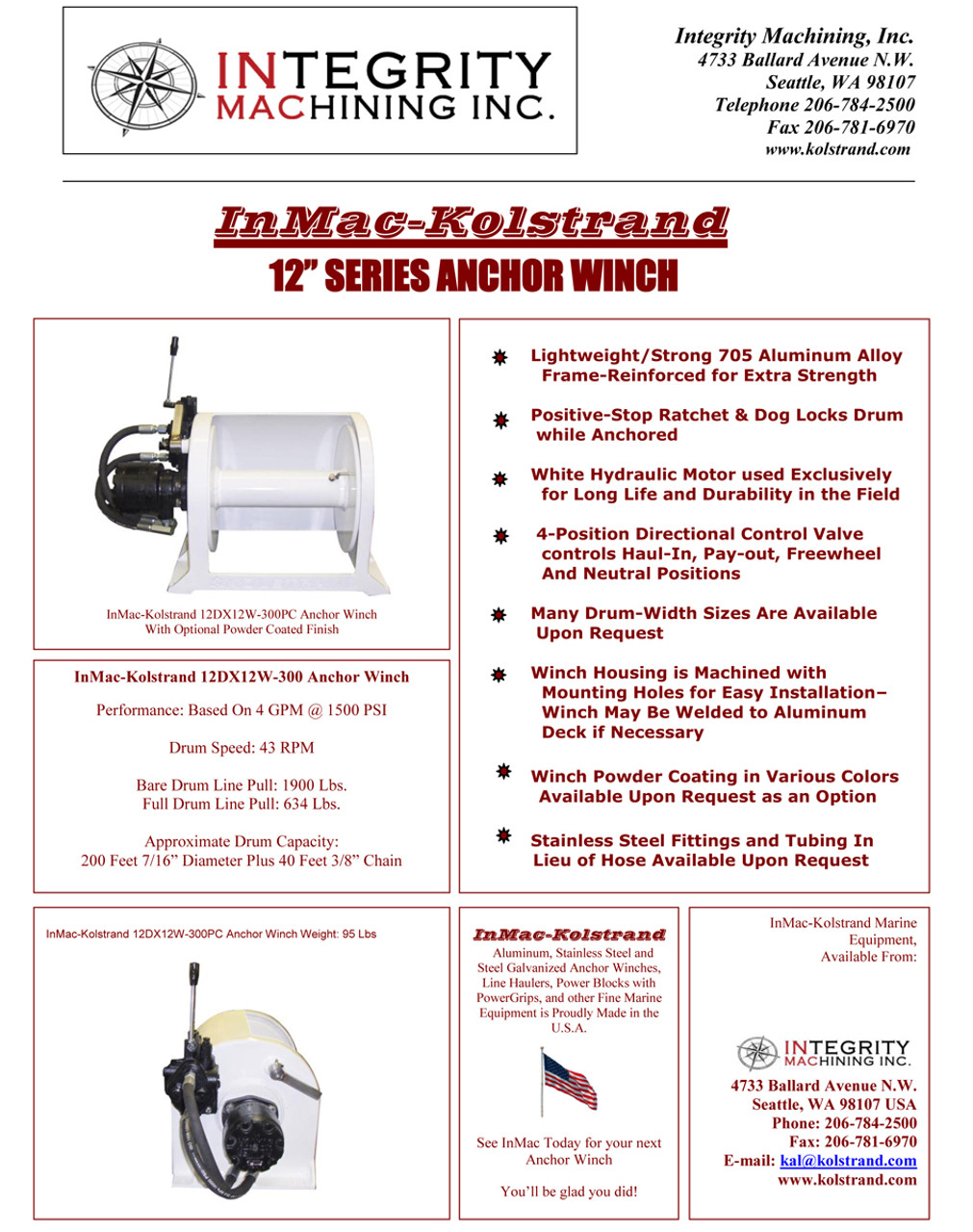

Features
- Made Entirely of Lightweight/Strong Aluminum Alloy
- Winch Housing is Machined with Mounting Holes for Easy Installation (Winch May Be Welded to Aluminum Deck if Necessary)
- Winch Frame-Reinforced for Extra Strength
- Positive-Stop Ratchet & Dog Locks the Drum while Anchored
- White Hydraulics RE Series Motor used Exclusively for Long Life and Durability in the Field
- 4-Position Directional Control Valve controls Haul-In, Pay-out, Free-spool and Neutral Positions
- Many Drum-Width Sizes Are Available Upon Request
- Powder Coating in Various Colors Available Upon Request (as an Option)

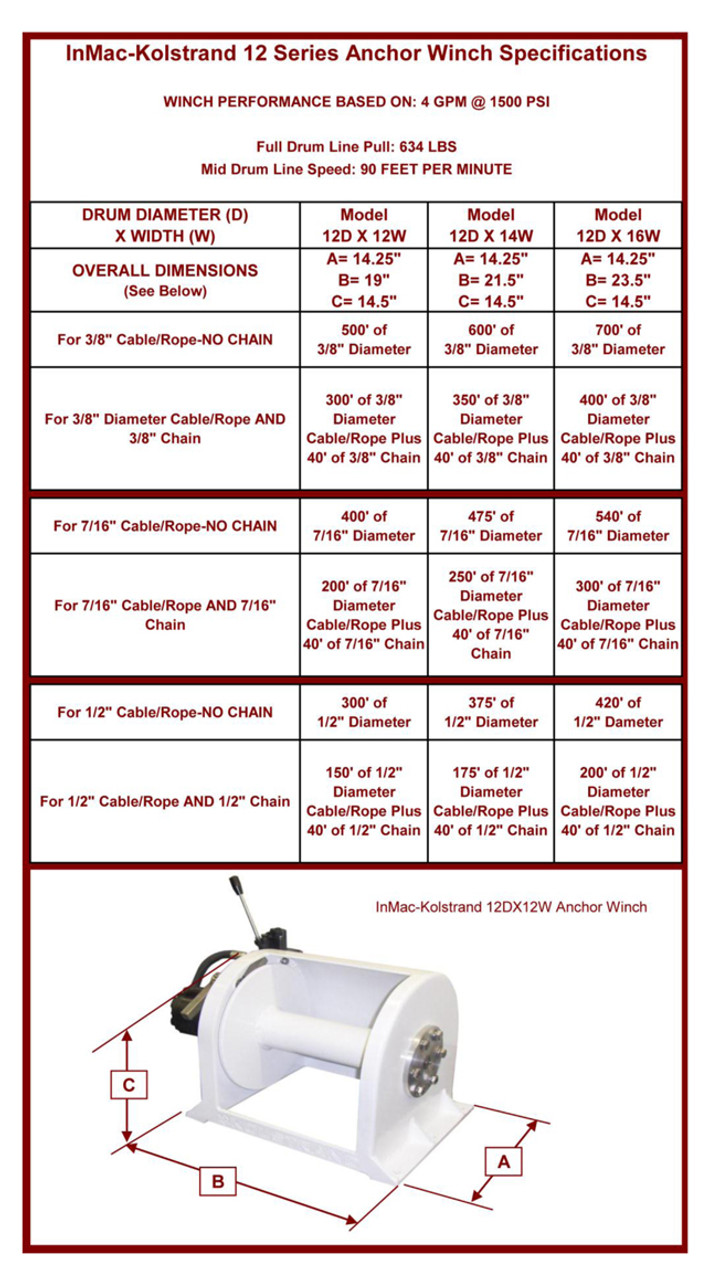

Winch Performance
- Based On 4 GPM @ 1500 PSI
- Drum Speed: 43 RPM
- Bare Drum Line Pull: 1900 Lbs
- Full Drum Line Pull: 634 Lbs
Kolstrand's All Aluminum Drum Style Anchor Winch is the perfect winch for the 25 to 32 Foot Vessel. Extra -Wide Assembly is available for the customer who needs the extra rope capacity.
Note: The purpose of Kolstrand Drum-style Anchor Winch is to pay-out and haul-in anchor line, usually with a shot of anchor chain. The winch is equipped with a ratchet and dog that will lock the drum, and is usually used by the vessel operator when anchoring in calm sea conditions.
As the winch is designed to haul a given load, and if the customer intends to anchor in calm conditions, the locking dog arrangement is usually sufficient. We do recommend that if the vessel is to anchor in other than calm sea conditions, that the user take a bite of the anchor line and secure it to a bow cleat, removing the load from the winch drum.
