Product Description
Features
- Lightweight/Strong Aluminum Alloy Frame, which is Reinforced for Extra Strength
- (2) Bronze Idler Line Guides With Stainless Steel Shafts
- Bronze Line Splitter
- 12” Diameter Stainless Steel Main Drive Sheaves Grip Line Sizes 1/4” Dia to 5/8” Dia

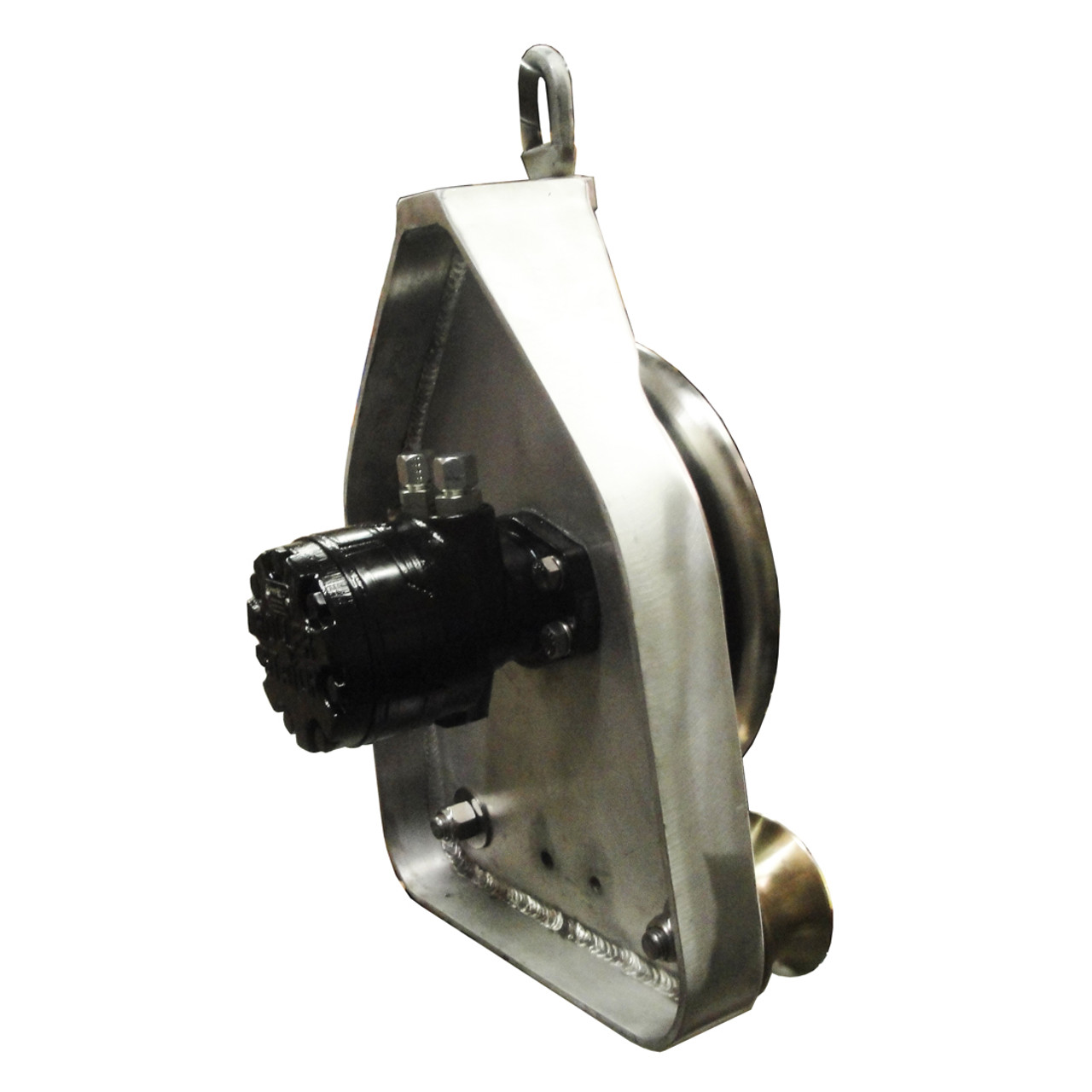

- White Hydraulics Industry-proven RE18 high-speed Hydraulic Motor
- 690 Lbs Line Pull-For Use with 8 GPM Input Flow
Optional
- Directional Control Valve, Equipped with Rotary-Operated Stainless Steel Spool
NOTE: LineHauler Requires a Davit to be installed into the vessel to be of adequate strength to handle not only the weight of the LineHauler, but the Total Intended Hauling Load. If in doubt, please consult with us or your Naval Architect for additional guidance.
Product Videos
Custom Field

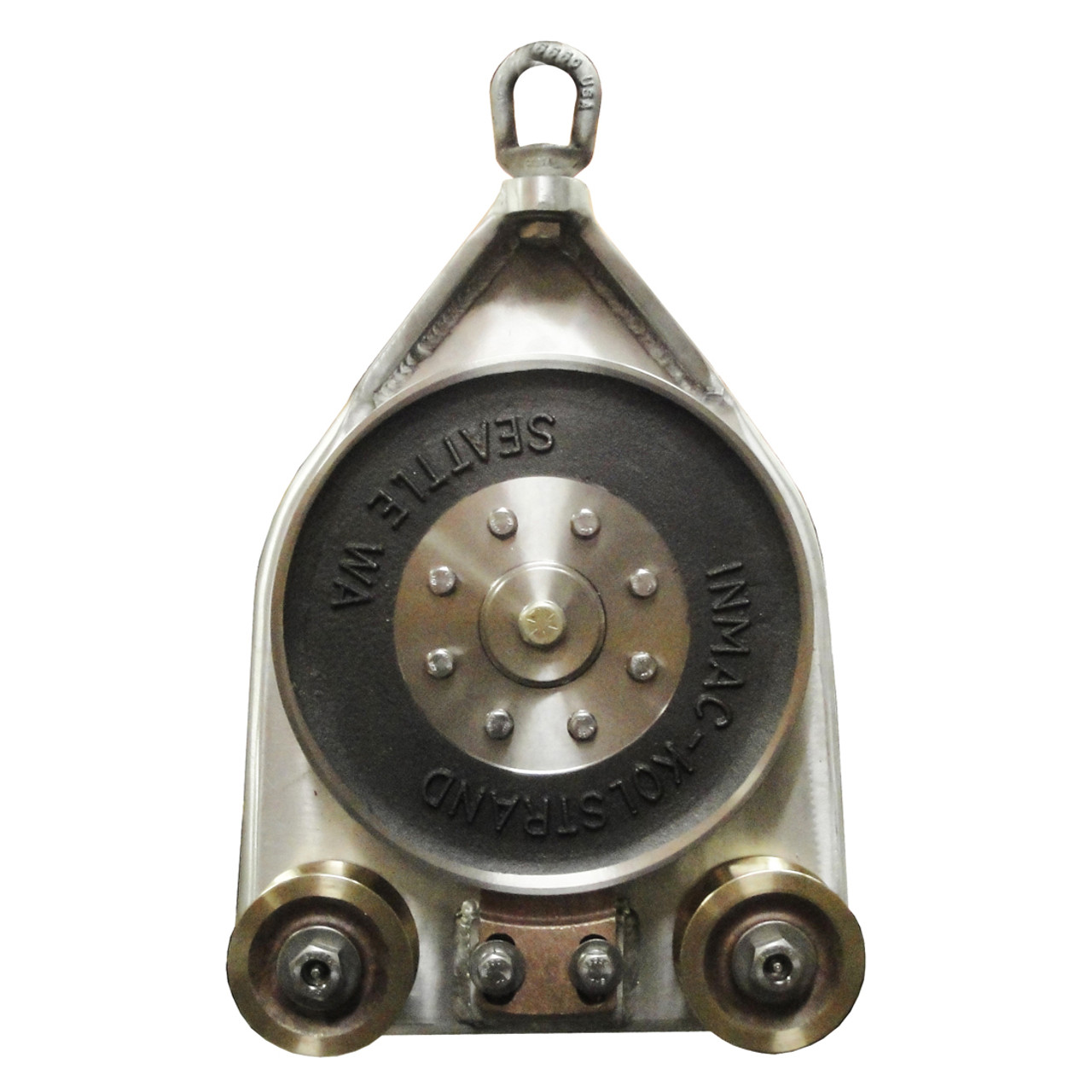

MAIN SHEAVES 12" Diameter Stainless Steel
IDLER SHEAVES 4" Diameter Bronze with Stainless Steel Greasable Idler Shafts
SPLITTER Bronze 2-Bolt Design
RECOMMENDED HYDRAULIC FLOW & PRESSURE 8 GPM @ 1500 PSI (2000 PSI Maximum)
SHEAVE SPEED (Based on Recommended Flow) 102 RPM
LINE PULL 690 Lbs.
INCOMING LINE SPEED 267 Feet Per Minute
DAVIT RECOMMENDATION KOLSTRAND #800
