Product Description
Features

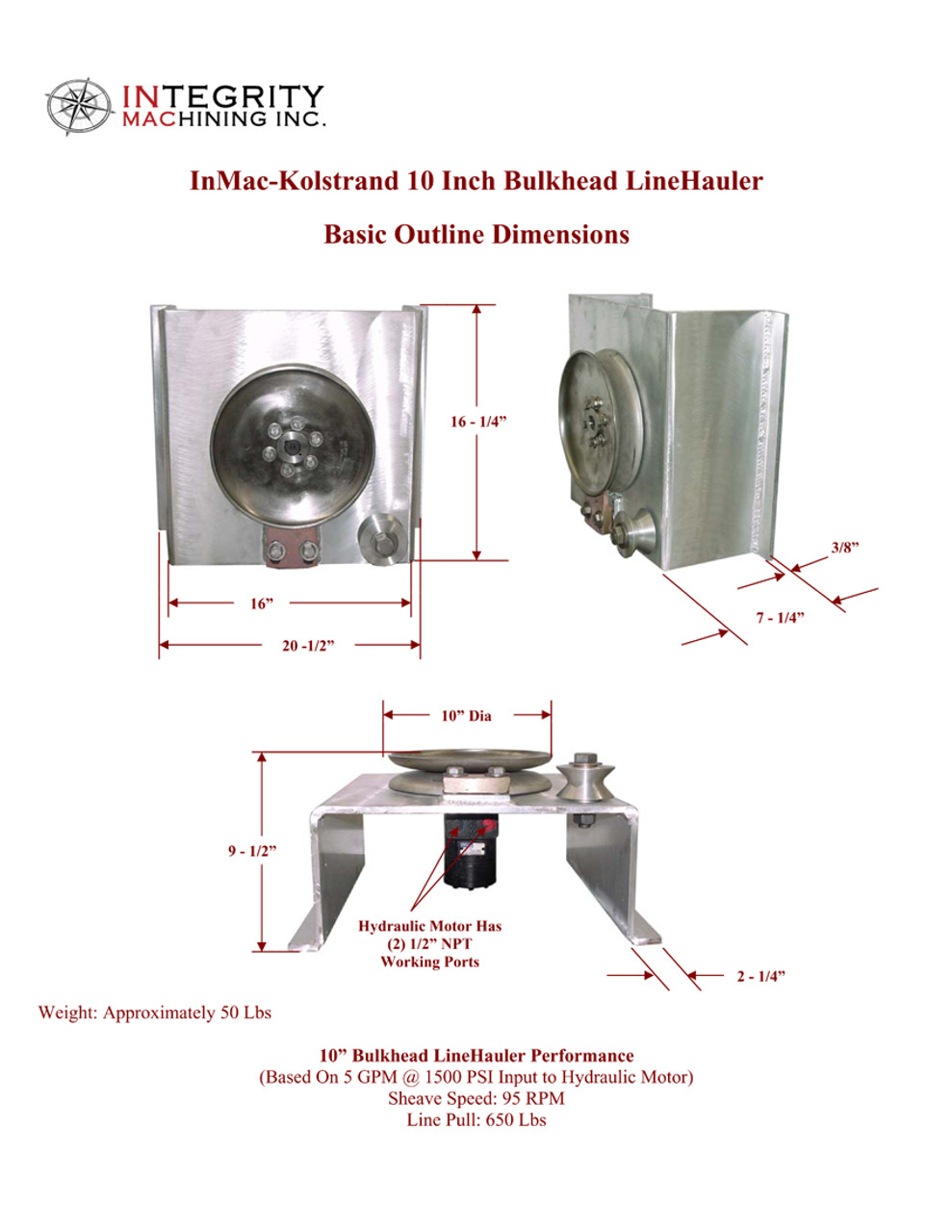

- Lightweight/Strong Aluminum Alloy Frame – (Inboard-Box-Style) Bulkhead Hauler Weighs only 50 Lbs!
- 10” Diameter Stainless Steel Main Drive Sheaves Grip Line Sizes 1/4” Diameter to 1/2” Diameter
- CharLynn H series 101-1013 Motor
- Equipped with One Stainless Steel Idler Line Guide With Greaseable Stainless Steel Shaft
- Bronze Line Splitter
Optional
- Honda 5 HP Self-Contained Hydraulic Power Unit
- Directional Control Valve and Hose Kit
Performance
- Rated Line Pull @ 1500 PSI is 650 Lbs.
- 5 GPM Input Achieves 95 Sheave RPM
When used in conjunction with the Optional Kolstrand Honda 5 HP Self-Contained Hydraulic Power Unit, along with the Optional Directional Control Valve and Hose Kit, this Compact hauler will pull your Trap or Crab/Shrimp Pot easily.
NOTE: Inboard LineHauler Requires a Davit to be installed into the vessel at the rail to be of adequate strength to handle NOT ONLY the Rated Load of the LineHauler, but the Total Intended Hauling Load. If in doubt, please consult with us or your Naval Architect for additional guidance.
