Product Description

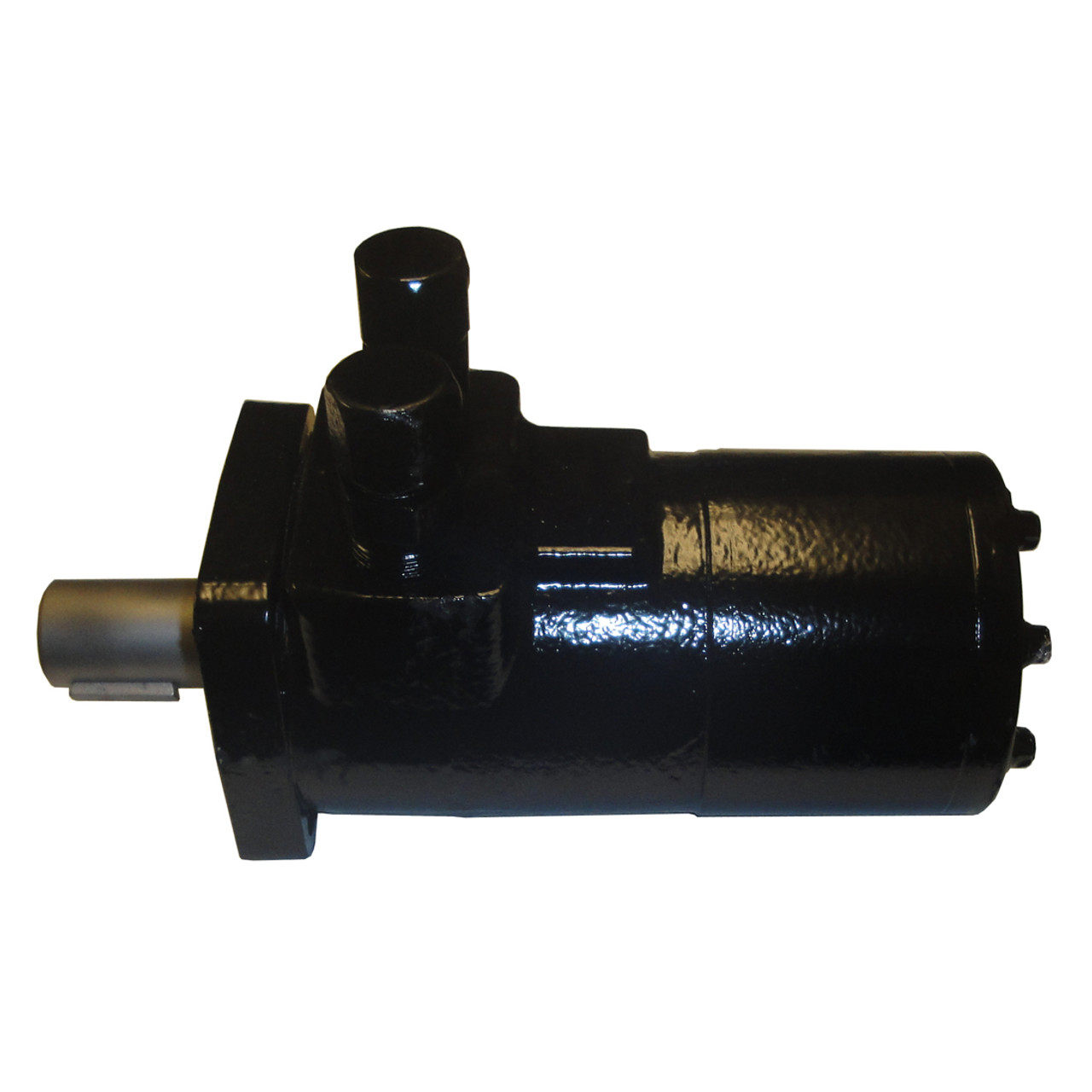

This CharLynn 101-1008 Hydraulic Motor fits many Kolstrand's popular Products, and has been improved for use in the Salt-Water Environment. The hydraulic motor has been professionally flame sprayed with a zinc Coating, and then Painted with a special 2-Part Epoxy Black Paint.
Equipped with a 1" diameter keyed shaft and SAE 'A' 4-bolt mounting arrangement with #8 straight Male JIC working ports.
Motor displacement Size=22.6 Cu. In per Rev
Motor Shaft develops 115 RPM with 12 GPM Input (Maximum Continuous Input Pressure=1250 PSI)
Weighs 13 Lbs
NOTE: H Series Gearmotor motors distribute pressurized fluid into and out of the orbit gear set (Gearmotor) through valve slots integrated into the output shaft. The Spool Valve H Series motors incorporate both valving & hydrodynamic journal bearings into a common shaft design and provide high torque at low speeds. Motor shaft rotation can be instantly reversed by changing direction of input/output flow while generating equal torque in either direction. The displacements available provide a wide variety of speeds and torques from any spool valve motor series.
