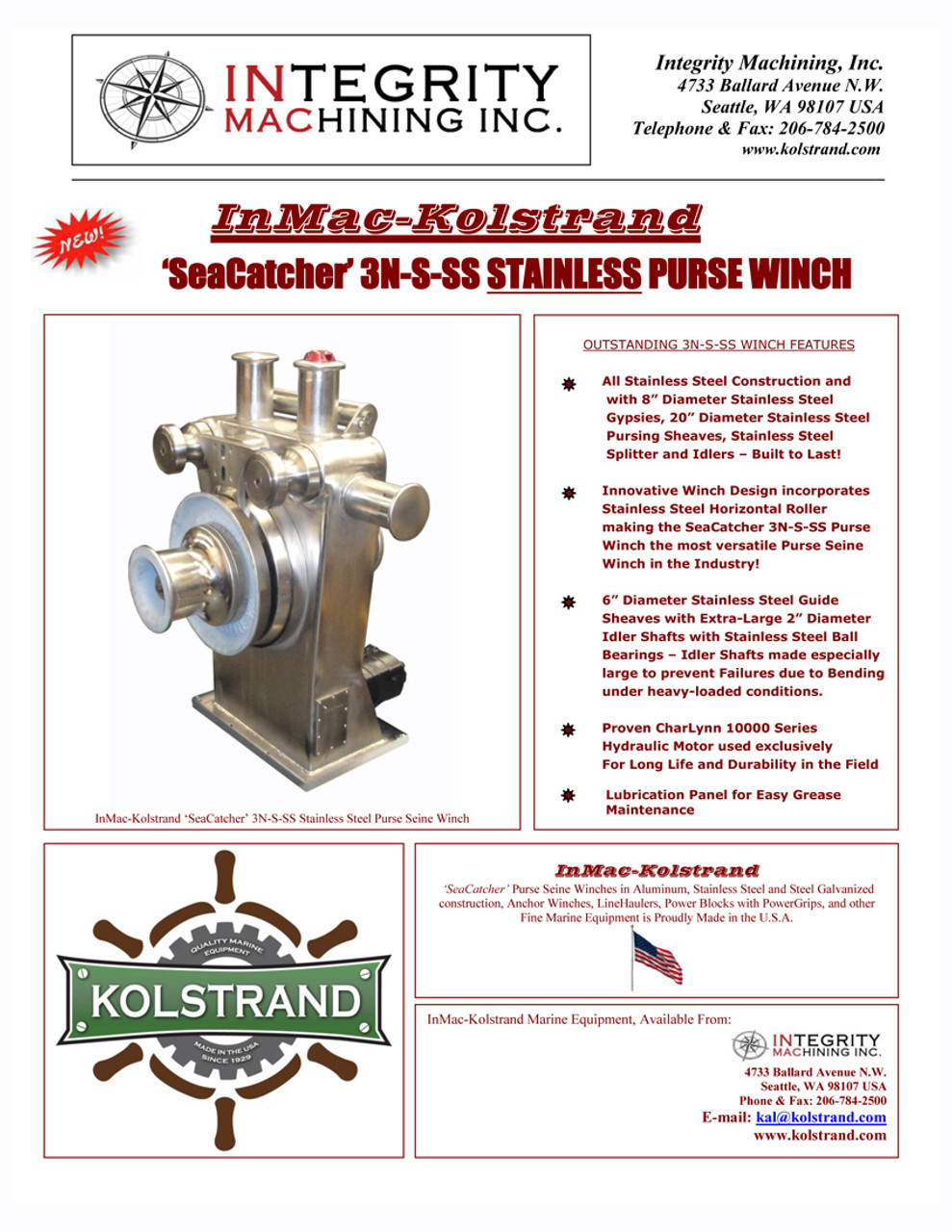

Product Description
Features
- All Stainless Steel Winch Housing
- (2) 8 Inch Stainless Steel Capstans
- 20" Diameter Stainless Steel Pursing V-Sheaves
- Stainless Steel Horizontal Roller with Stainless Steel Bearings
- Stainless Steel Splitter
- Large Stainless Steel Idler Rollers
- Large Diameter Stainless Steel Idler Shafts equipped with Stainless Steel Bearings
- E-STOP Emergency Kill Switch Installed into the Winch Horn
- Powerful CharLynn 10,000 Series Hydraulic Motor
- Winch weighs Approximately 1000 Lbs
Optional
- E-Stop Control Valving with Wiring Diagram
- Available 6" Taller

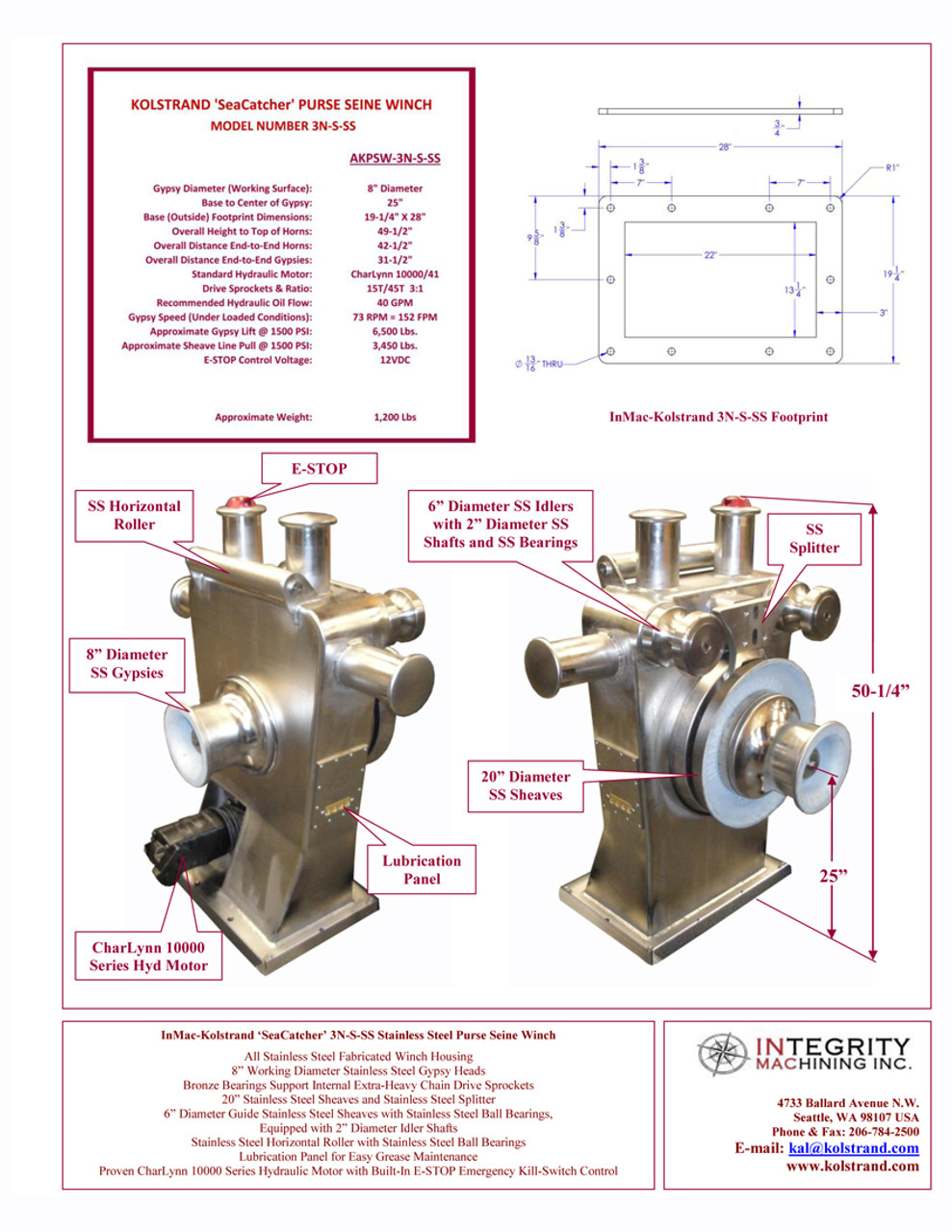

Winch Performance
-
Based upon 40 GPM @ 1500 PSI
- With CharLynn 10000/41 Hydraulic Motor
- Capstan Line Pull: 6,500 Lbs
- Capstans Turn 73 RPM Under Loaded Conditions = 152 FPM
- Sheave Line Pull: 3,450 Lbs = 320 FPM
Product Videos
Custom Field
HYDRAULIC MOTOR CHARLYNN 10000/57 (RECOMMEND 40 GPM @ 1500 PSI)
CAPSTAN STYLE STAINLESS STEEL 8" WORKING DIAMETER-KNURLED
CAPSTAN & SHEAVE SPEED 51 RPM
CAPSTAN LINE PULL 9,250 LBS
CAPSTAN LINE SPEED 106 FEET PER MINUTE
SHEAVE STYLE STAINLESS STEEL 20" DIAMETER
SHEAVE LINE PULL 4,625 LBS
SHEAVE LINE SPEED 215 FEET PER MINUTE
IDLER ROLLER MATERIAL STAINLESS STEEL
IDLER ROLLERS - BEARING TYPE & MATERIAL BALL BEARING - STAINLESS STEEL
HORIZONTAL ROLLER MATERIAL STAINLESS STEEL
HORIZONTAL ROLLER - BEARING TYPE & MATERIAL BALL BEARING - STAINLESS STEEL
DRIVE CHAIN MATERIAL TYPE DAC PROTECTED STEEL ROLLER CHAIN
SHEAVE STUD MATERIAL TYPE 17-4 STAINLESS STEEL HEAT TREATED
SHEAVE SHIM KIT MATERIAL TYPE STAINLESS STEEL SHIMS
WINCH HOUSING MATERIAL ALL STAINLESS STEEL
IS A DUAL-MOTOR AVAILABLE FOR THIS WINCH? YES! PLEASE CONSULT WITH KOLSTRAND IF THIS OPTION REQUIRED!
