Product Description

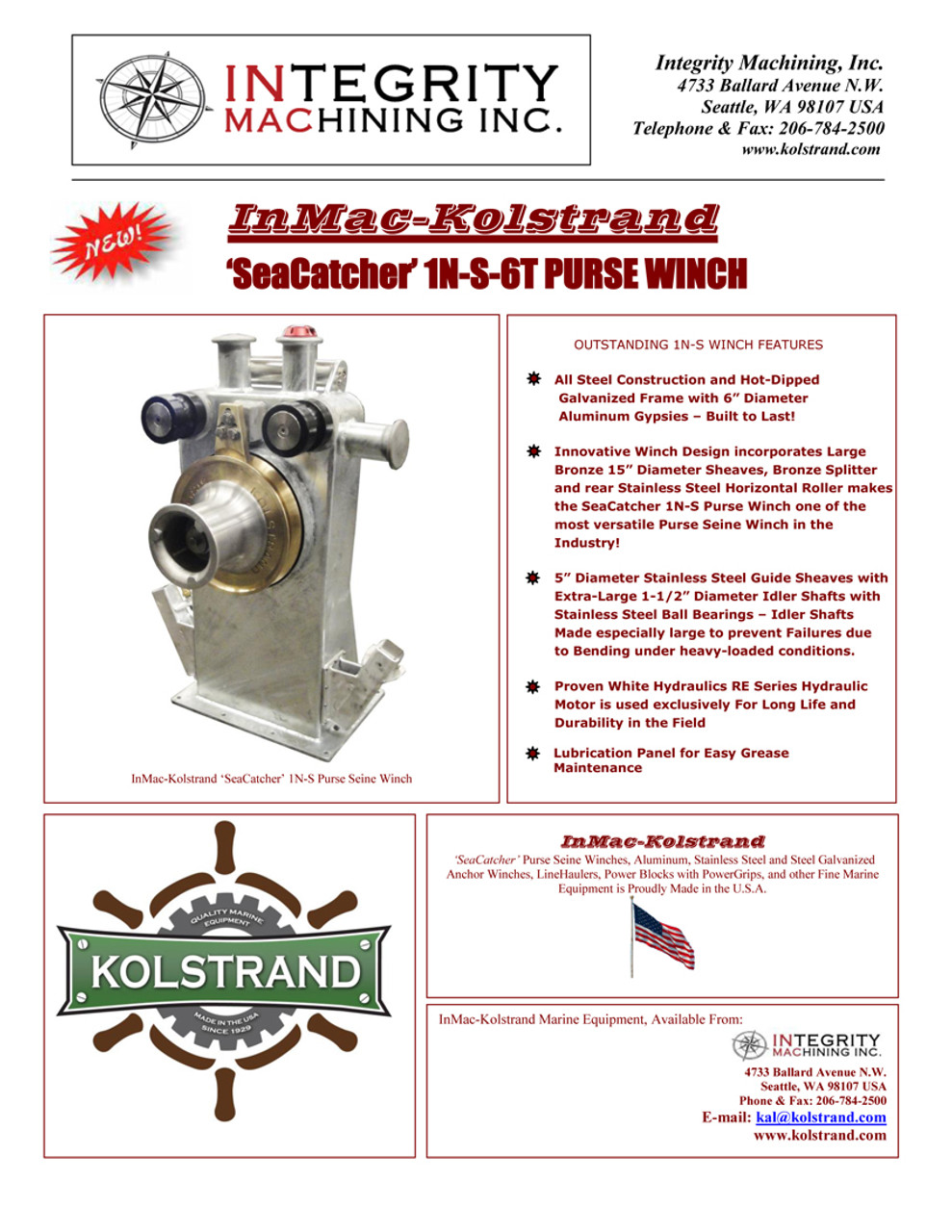

Features
- Standard Aluminum capstans
- 15" Diameter Bronze V-Sheaves
- Large Diameter Stainless Steel Idler Shafts equipped with Ball Bearings
- Stainless Steel Horizontal Roller with Ball Bearings
- Bronze Splitter
- Provided Grease Panel makes lubricating a breeze
- E-STOP Emergency Kill Switch Installed into the Winch Horn
- Winch Housing is of Sturdy Steel Construction with Large Radius Edges, then Hot-Dipped Galvanized
- Powerful White Hydraulics RE Series Hydraulic Motor is used exclusively for maximum performance
- Winch weighs approximately 750 Lbs
Optional
- Available 6" Shorter
- E-Stop Control Valving with Wiring Diagram
Winch Performance: Based upon 20 GPM @ 1500 PSI
With White Hydraulics RE18 Hydraulic Motor
Capstan Line Pull: 4,200 Lbs - Capstans Turn 82 RPM Under Loaded Conditions = 126 FPM
Sheave Line Pull: 2,200 Lbs = 246 FPM
Product Videos
Custom Field

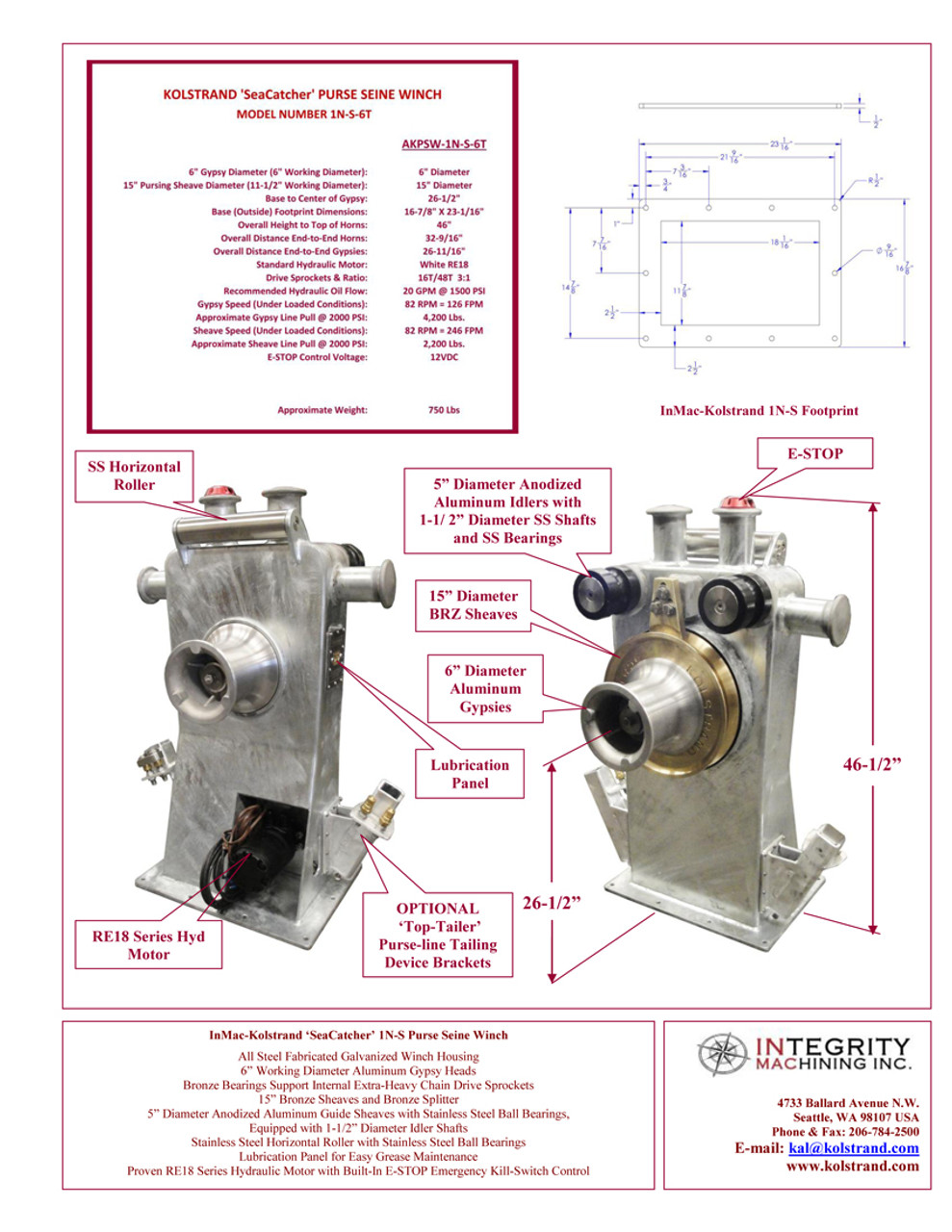

HYDRAULIC MOTOR WHITE RE18 (RECOMMEND 20 GPM @ 1500 PSI)
CAPSTAN STYLE ALUMINUM 6" WORKING DIAMETER
CAPSTAN & SHEAVE SPEED 82 RPM
CAPSTAN LINE PULL 4,200 LBS
CAPSTAN LINE SPEED 126 FEET PER MINUTE
SHEAVE STYLE BRONZE 15" DIAMETER
SHEAVE LINE PULL 2,200 LBS
SHEAVE LINE SPEED 246 FEET PER MINUTE
IDLER ROLLER MATERIAL ALUMINUM - ANODIZED
IDLER ROLLERS - BEARING TYPE & MATERIAL BALL BEARING - STEEL
HORIZONTAL ROLLER MATERIAL STAINLESS STEEL
HORIZONTAL ROLLER - BEARING TYPE & MATERIAL BALL BEARING - STEEL
DRIVE CHAIN MATERIAL TYPE STEEL ROLLER CHAIN
SHEAVE STUD MATERIAL TYPE G80 STEEL STUDS
SHEAVE SHIM KIT MATERIAL TYPE UHMW SHIMS
