Product Description
Features

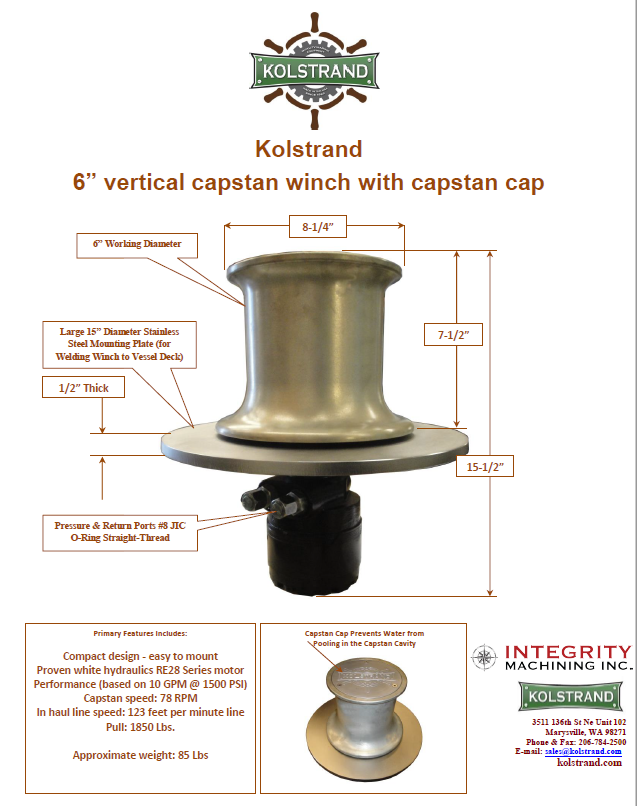

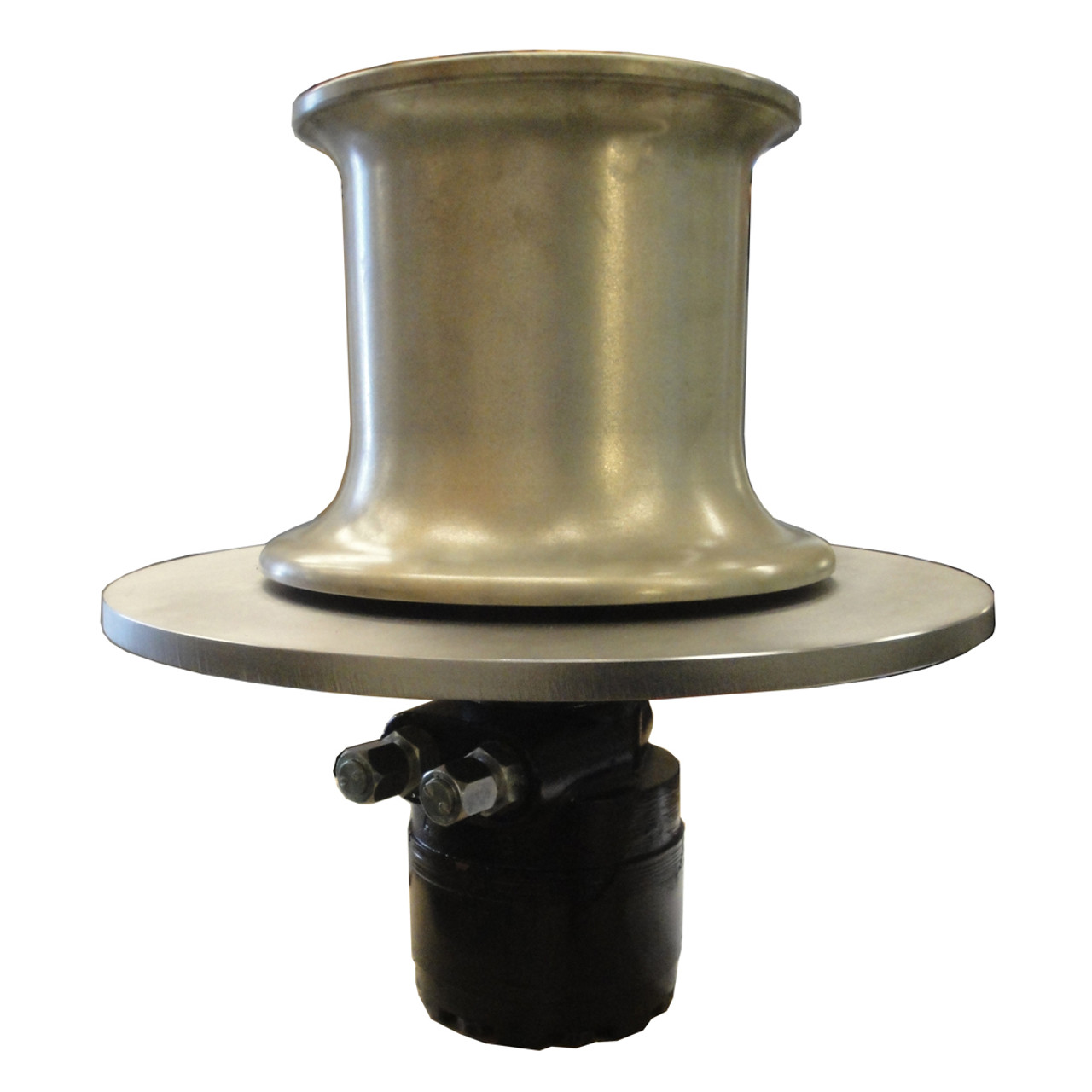

- Popular and versatile vertical capstan winch with "weld-down style" stainless steel frame/plate and aluminum capstan head solves many handling problems
- Lightweight winch installs easily and may be used in either horizontal or vertical applications.

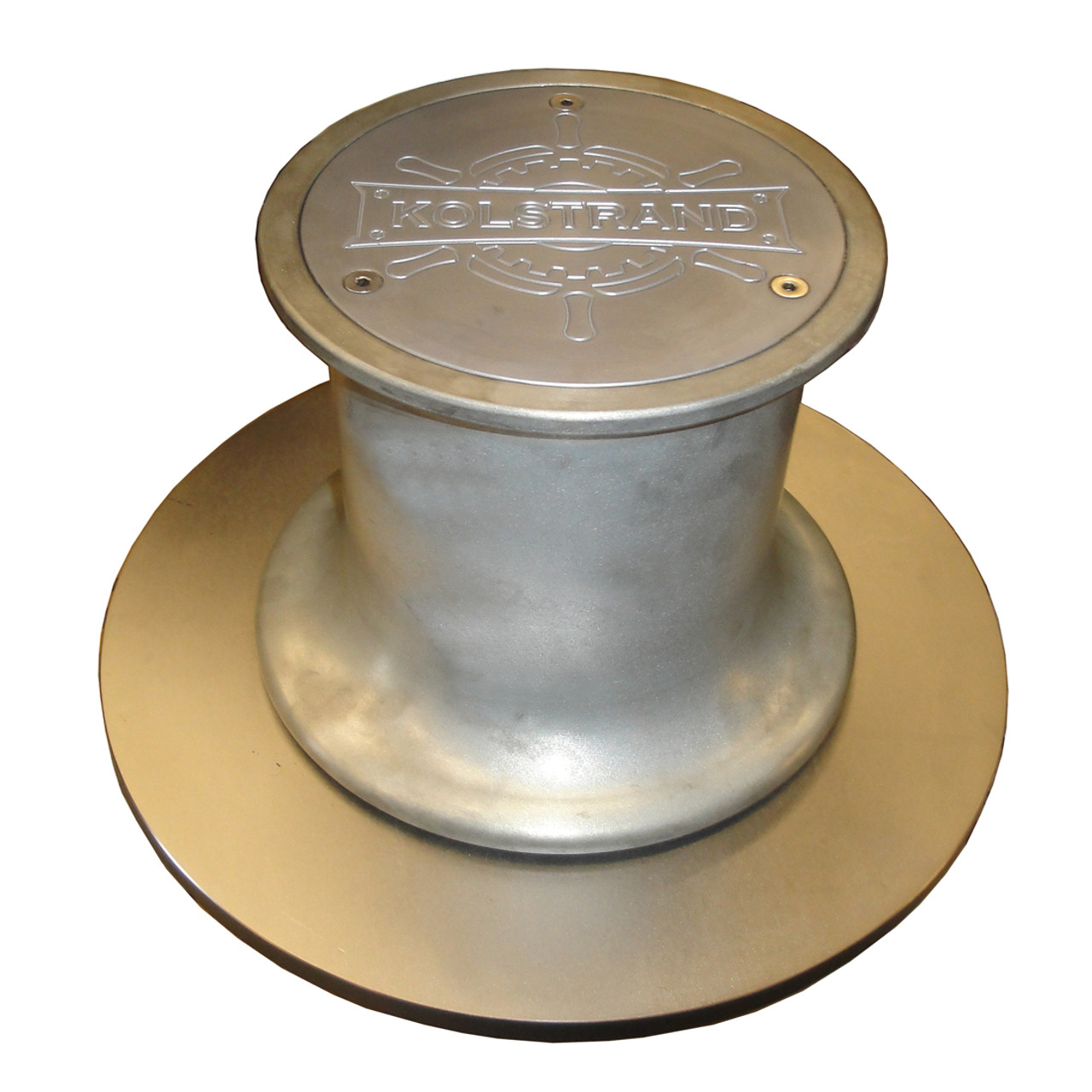

- Winch comes complete with Kolstrand exclusive capstan cap, to prevent water from pooling in the uppermost capstan cavity when used in a vertical attitude
Winch Performance
- Based on recommended flow & pressure of 10 GPM @ 1800 PSI
- Capstan Speed: 78 RPM = 123 Feet per minute line speed
- Line Pull: 1,850 Lbs.
NOTE: Winch is designed to be installed by cutting a hole in your deck, setting the winch flush into the hole, and weld winch in place. Large 15" diameter stainless steel mounting plate is 1/2" thick for firm and rigid mounting, while keeping hoses and connections beneath the deck.
